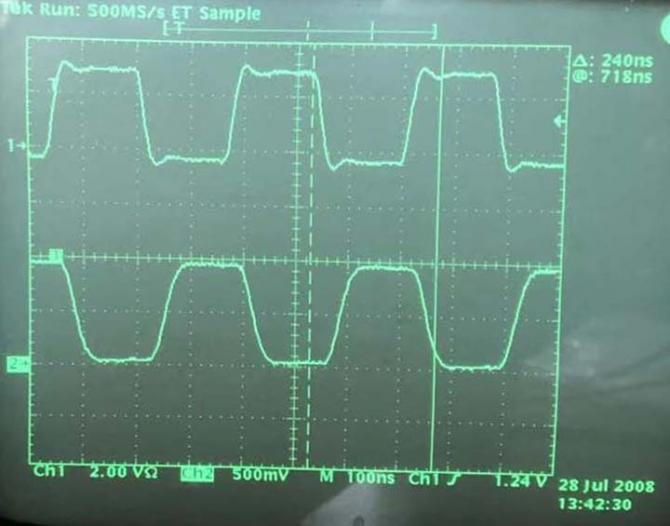

Switching speed is a critical factor for different applications. We use different technologies to achieve switching speed from millisecond to less than 1ns second. The Non-Mechanical Switches offer unlimited operation cycles, high reliability and unparallel stability. For those applications requiring a custom solution, our veteran engineers are ready to meet your challenges and needs with customized solutions. The figure blow shows 3MHz modulation based on our nano-second switch with optical signal at channel2

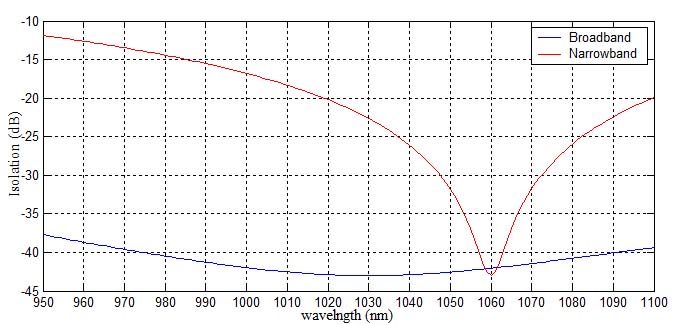

Optical devices with broadband wavelength Operation and excellent performance are ideal for many applications. It eliminates wavelength limitations, simplify system design, improve system sensitivity and overall performance. The figure below is an example of Isolation Vs Wavelength for broadband isolators and circulators.

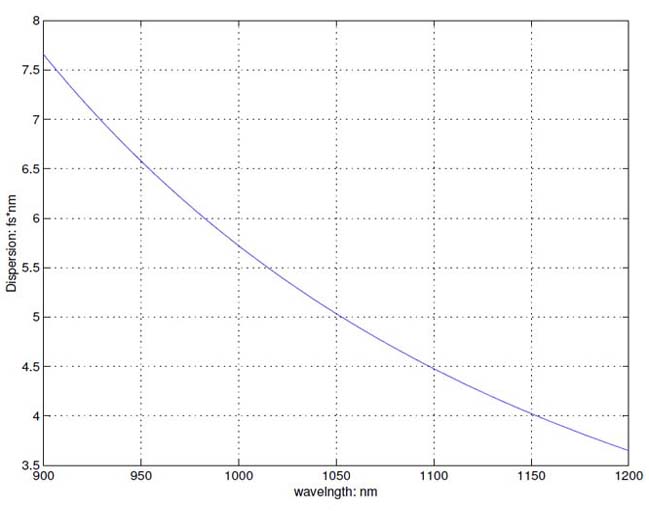

One of the short wavelength circulator’s application is optical coherence tomography (OCT). one type of our circulator is specially designed for this application to reduce the noise and improve the image quality. Spectral dispersion compensation is required to get perfect interference pattern for some applications. The figure below is an example of dispersion Vs Wavelength.
